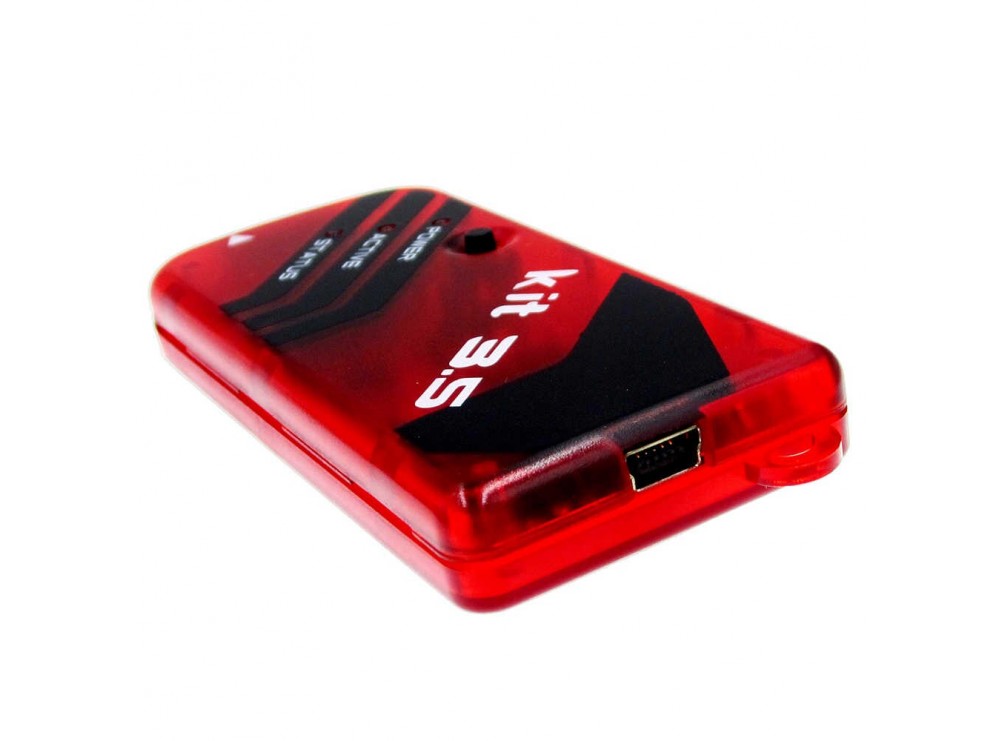

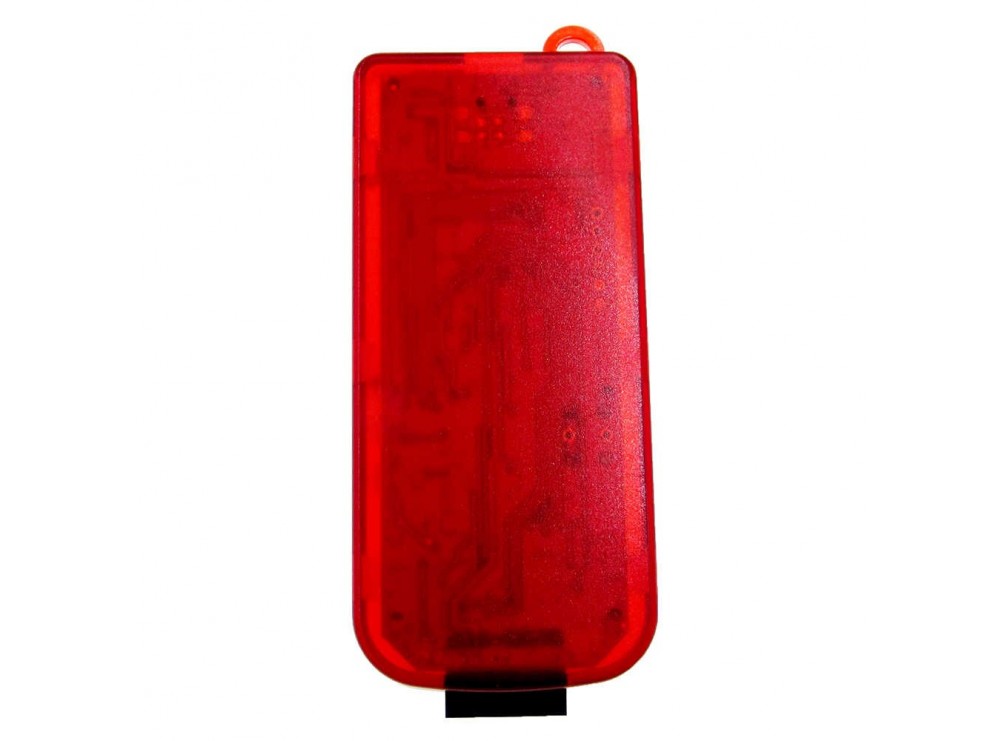

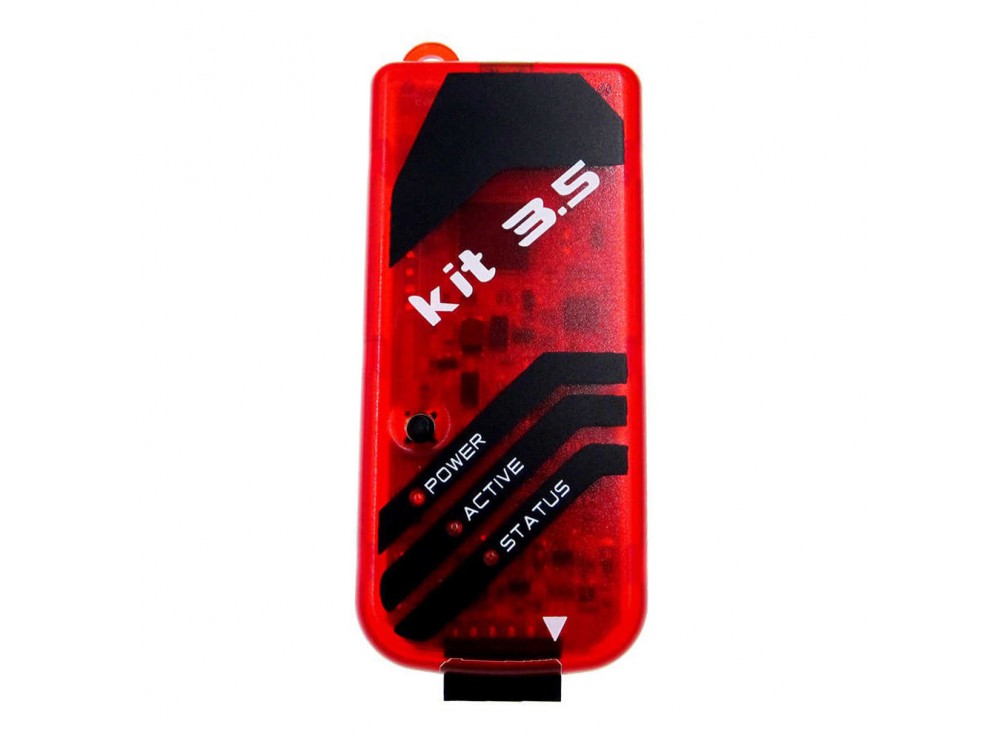

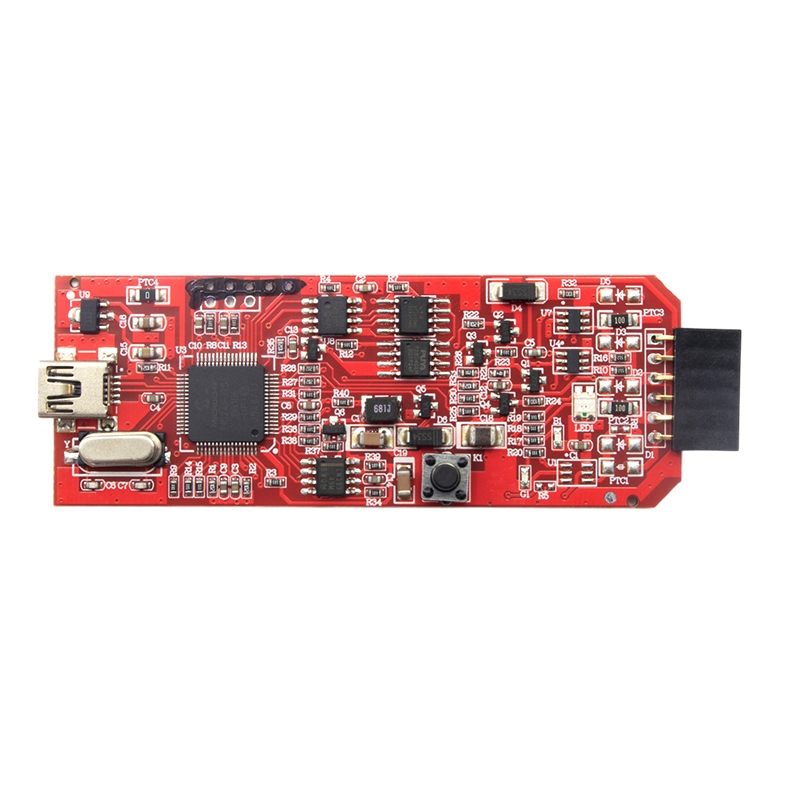

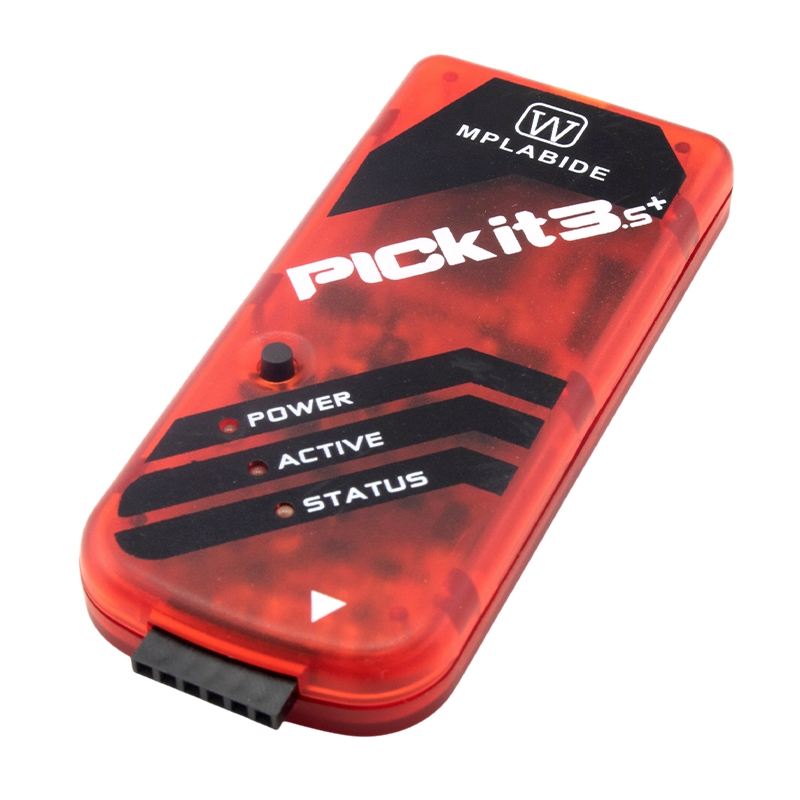

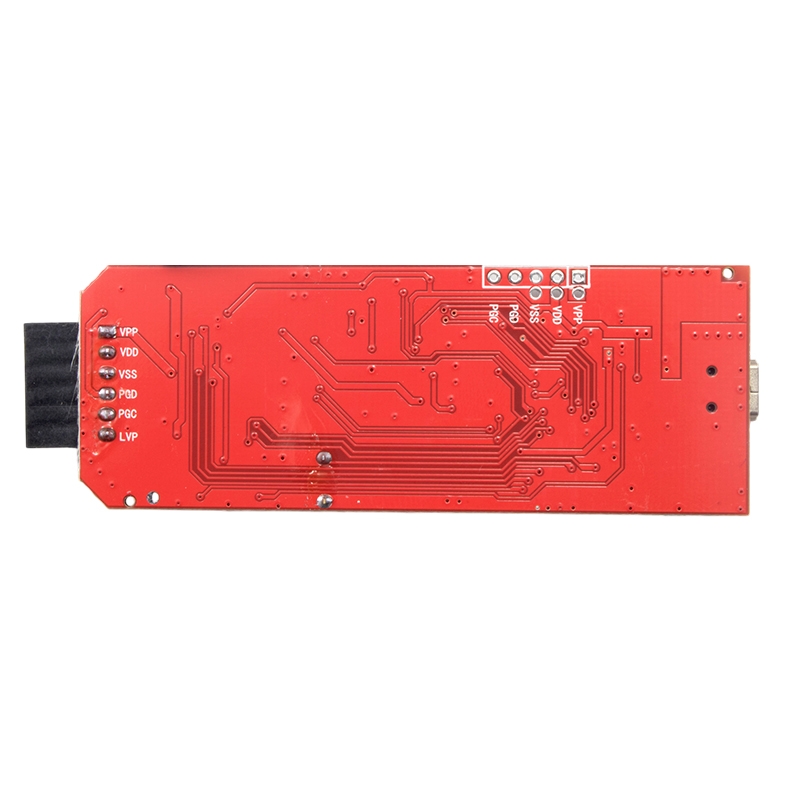

پروگرامر و دیباگر PICKIT3.5

کاربردها:

با استفاده از این پروگرامر می توانید انواع  میکروکنترلرهای PIC و DsPic قدیمی و جدید را پروگرام نمایید.

مشخصات:

• قابلیت پروگرام کردن به صورت Off-Line بدون کرش
• پشتیبانی از نسخه های مختلف نرم افزار MPLAB,MPLAB X
• بدون نیاز به  firmware
• سرعت برنامه ریزی بالاتر نسبت به ورژن های قبلی

Introduction

PICkit3 Circuit Debugger in Circuit / Programmer uses in-circuit debugging of the logic included in each chip with flash memory provides an inexpensive hardware debugger and programmer. And this update kit 3.5 is your best choice!
After the advantages of the upgrade:
1. The firmware is never lost, the firmware can be self-healing, in order to avoid the demolition of the cover.
2. offline programming is never broken, so download more smoothly and completely Conquer all versions of MPLAB, MPLAB X.
3. Each pickit3.5 with a unique serial number, in MPLAB X, can work with several kit3.5.
4. Increase the current power supply, the output voltage is more stable.
5. Interface protection is more advanced.

Specification

USB(12 Mbits full speed / S interface to host PC)
Real-time runtime
Compatible with MPLAB IDE (free download from Microchip)
Built-in voltage / short circuit monitor
Firmware update from PC / web download
Fully sealed
Diagnostic LEDs (power, load , error)
Read / write program and microcontroller data memory
Erase space memory program by checking
freezing-peripherals in breakpoint
Program up to 512 K bytes flash with programmer-to-Go
ICSP cable included

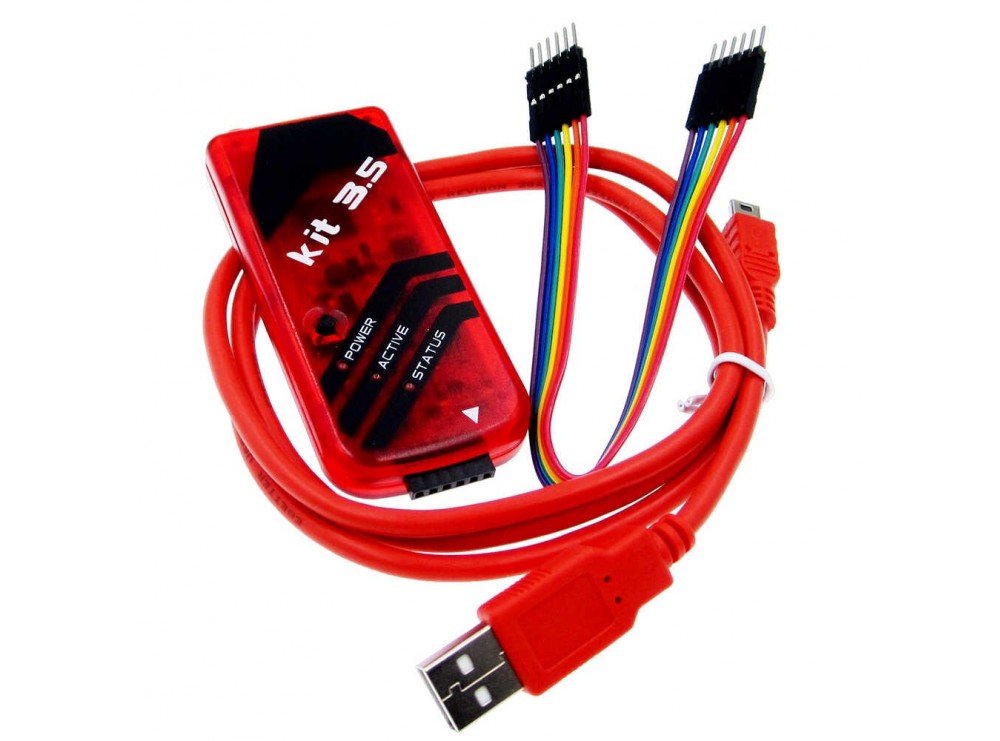

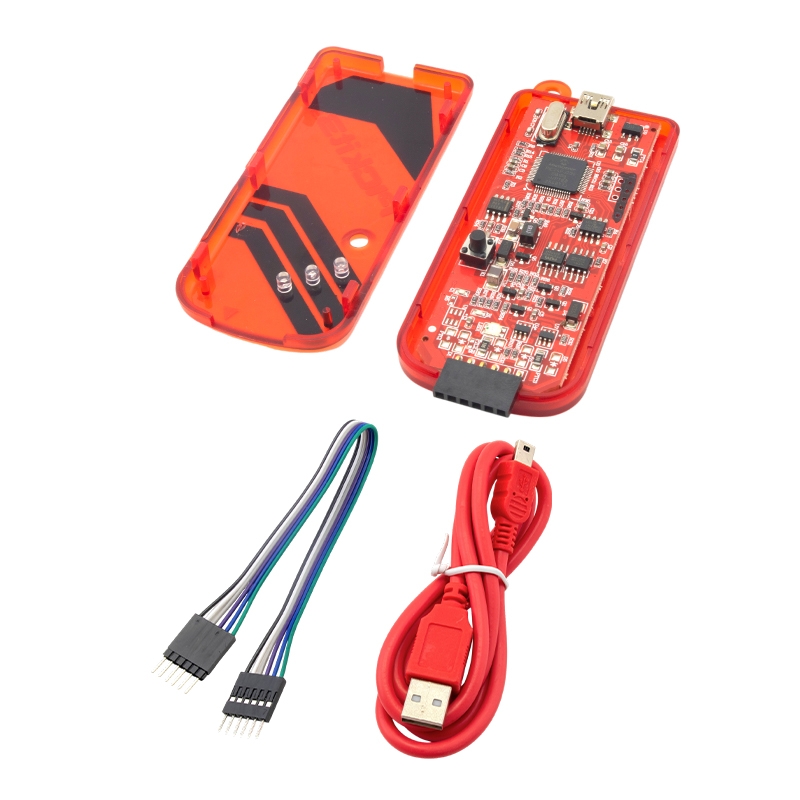

Package includes

1 pc. pickit3.5 Pic kit3.5 debugger programmer emulator controller Pic controller
1 PC. Mini USB cable
1 pc. 6 pin flat cable
