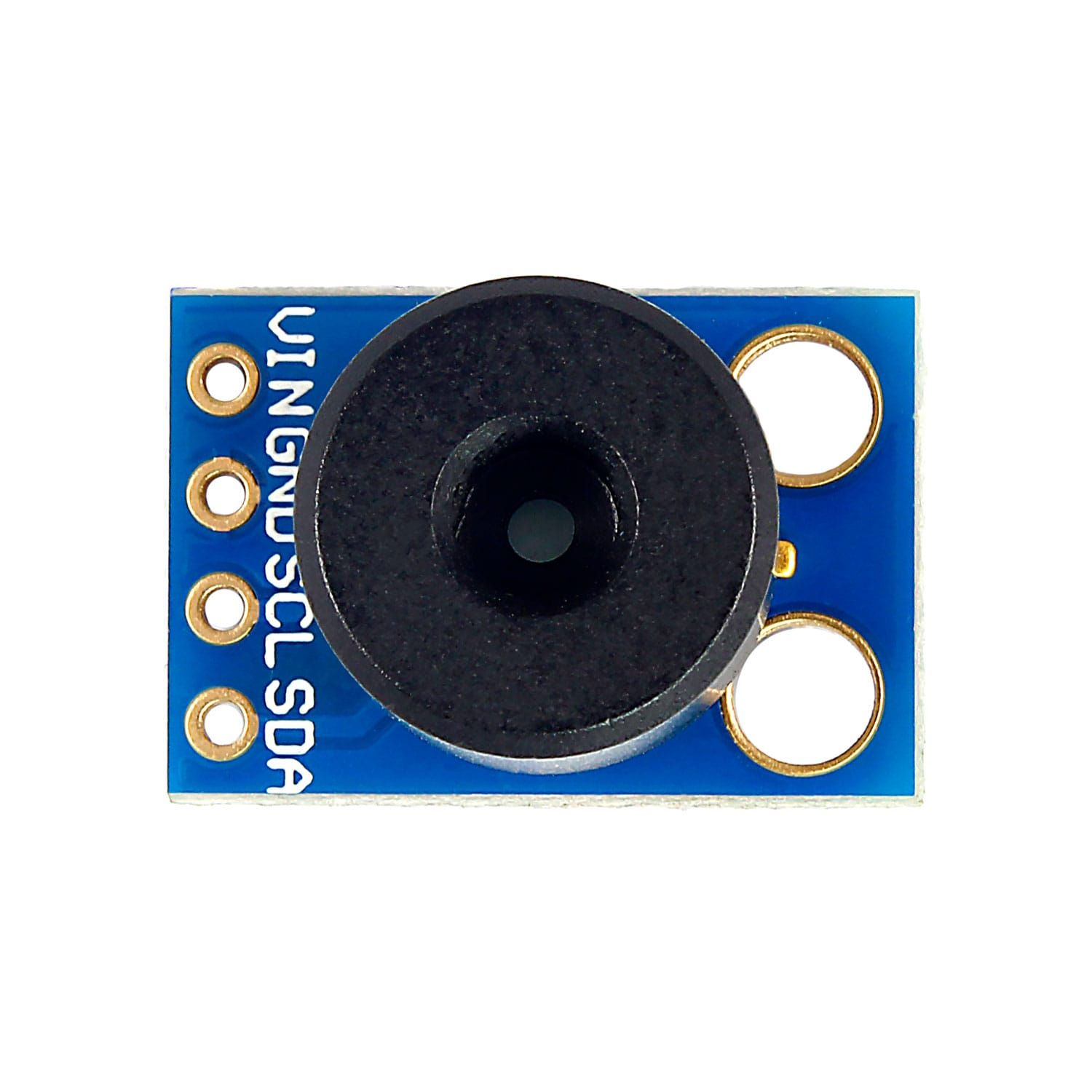

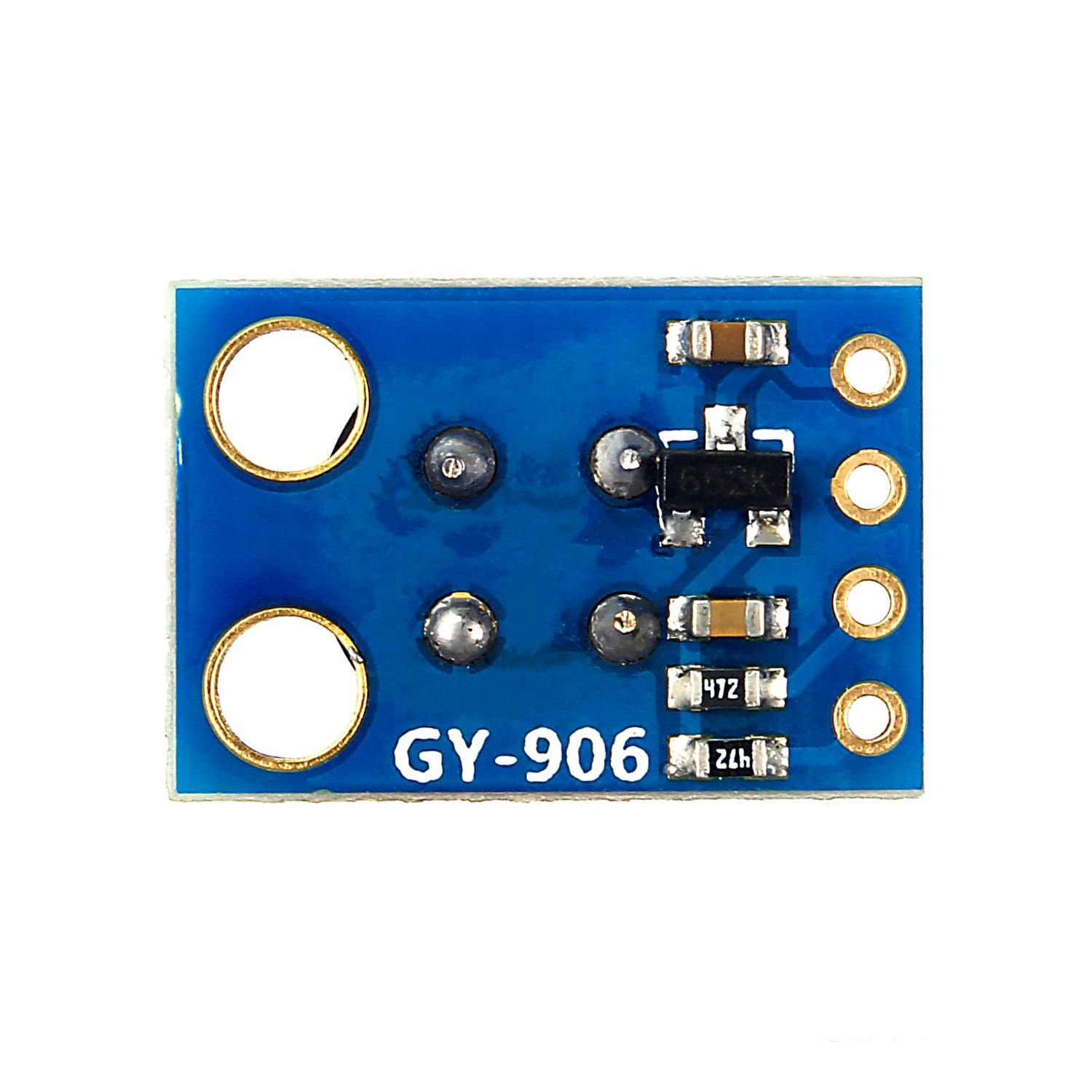

ماژول دماسنج غیر تماسی مادون قرمز مدل GY-906-BCC

معرفی:

ماژول دماسنج غیر تماسی مدل GY-906-BCC مادون قرمز یک ابزار کاربردی است. این محصول مجهز به چیپ MLX90614ESF-BCC بوده و ولتاژ کاری آن 3 تا 5 ولت است. در این دماسنج از پروتکل ارتباطی IIC استاندارد بهره گرفته شده است. دقت اندازه گیری این محصول 0.02 درجه سانتی گراد است.

Description:

Chip: MLX90614ESF-BCC
Voltage: 3-5V
Communication: standard IIC communication protocol
Small size, low cost
Mounted on a breakout board with two types of pins
10k Pull up resistors for the I2C interface with optional solder jumpers
Easy to integrate
Factory calibrated in wide temperature range:
-40…+125°C for sensor temperature and
-70…+380°C for object temperature.
High accuracy of 0.5°C over wide temperature range (0…+50°C for both Ta and To) High (medical) accuracy calibration.

Measurement resolution of 0.02°C
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuous reading
Simple adaptation for 8…16V applications
Sleep mode for reduced power consumption
Different package options for applications and measurements versatility
Automotive grade.

Applications Examples:

High precision non-contact temperature measurements
Thermal Comfort sensor for Mobile Air-conditioning control system
Temperature sensing element for residential, commercial and industrial building air-conditioning Windshield defogging
Automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Multiple zone temperature control – up to 127sensors can be read via common 2 wires
Thermal relay / alert
Body temperature measurement.
